ATEX Certified

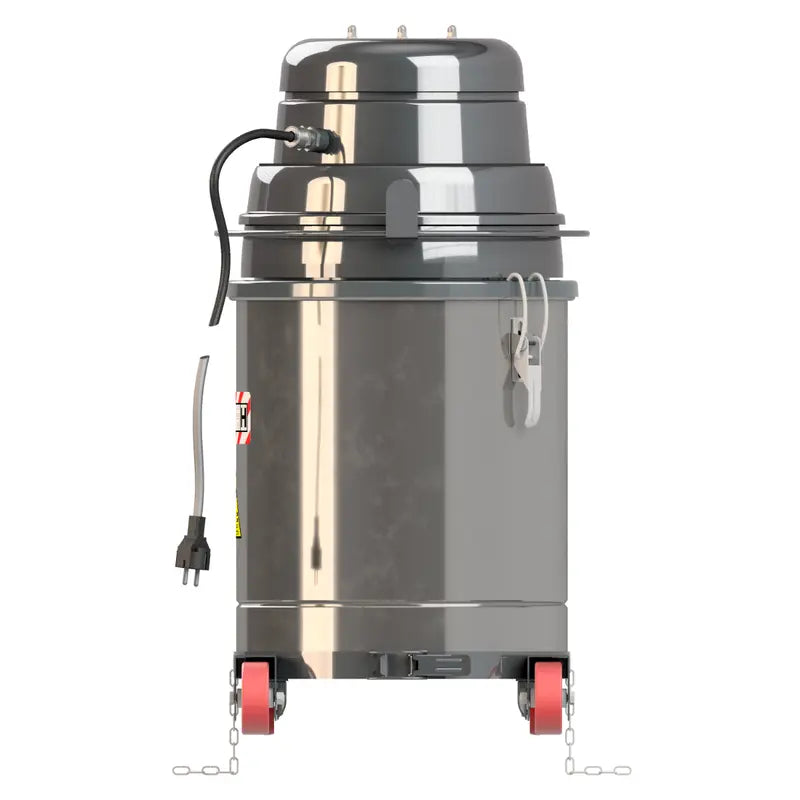

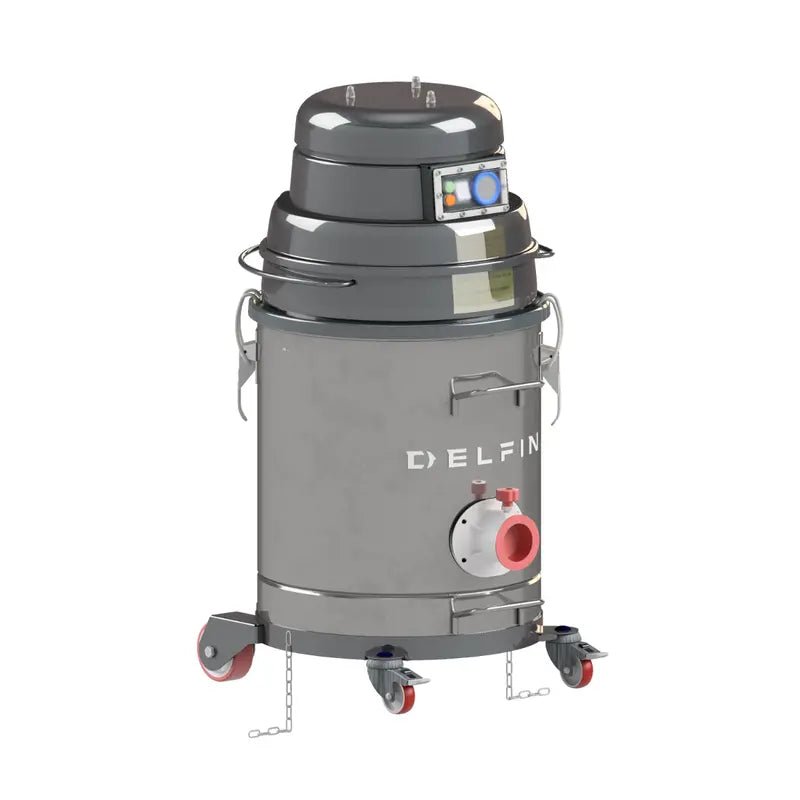

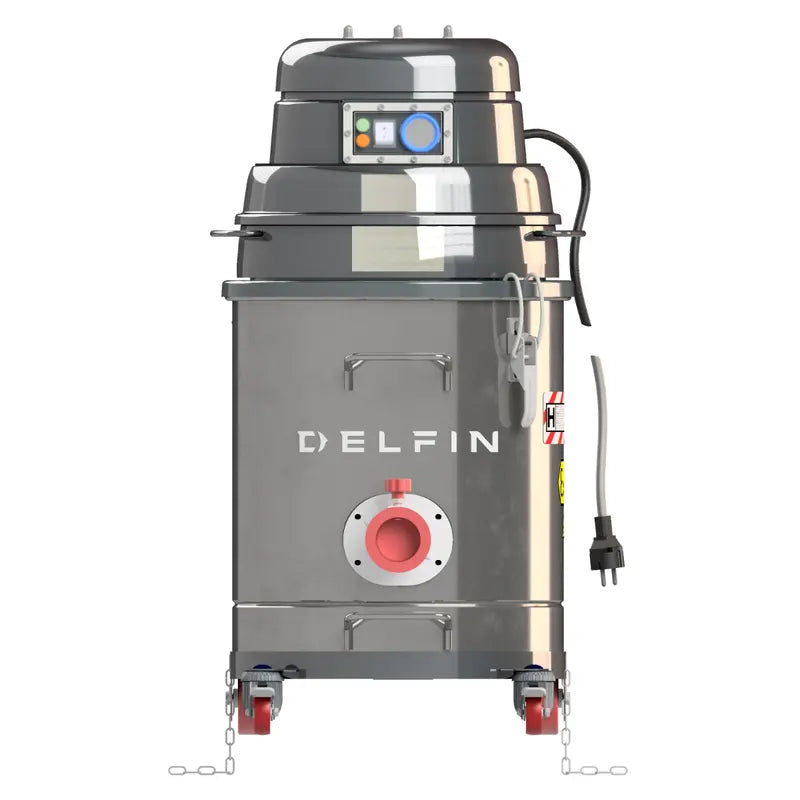

Compact, handy and extremely versatile. The new ATEX industrial vacuum cleaner model 301 has been designed to safely vacuum combustible dust both in explosion risk classified zones and in non-classified zones. The new single-phase Brushless or Bypass head for ATEX certified models is protected by an Ex certified safety housing specifically designed to prevent the entry of combustible dust and to prevent explosion risks. The AISI304 stainless steel tank, the antistatic polyester class M filter, and the Absolute HEPA Filter are standard to ensure safe suction. The possibility of using class M filter bags adds an additional level of protection for the operator and makes the disposal of recovered dust easier.
Features
Application: Fine dust
Footprint: Compact and mobile
Material: Stainless steel tank AISI304
Filter: Polyester, Antistatic Filter Class M
Features: Certified Ex tb Dust Tight IP64 head, tested ATEX accessories and
non-metallic parts
Compliance: Compliance with EN IEC 62784:2018 for zone 22
Content
1 x Delfin Vacuum MTL 301
1 x Collection bag

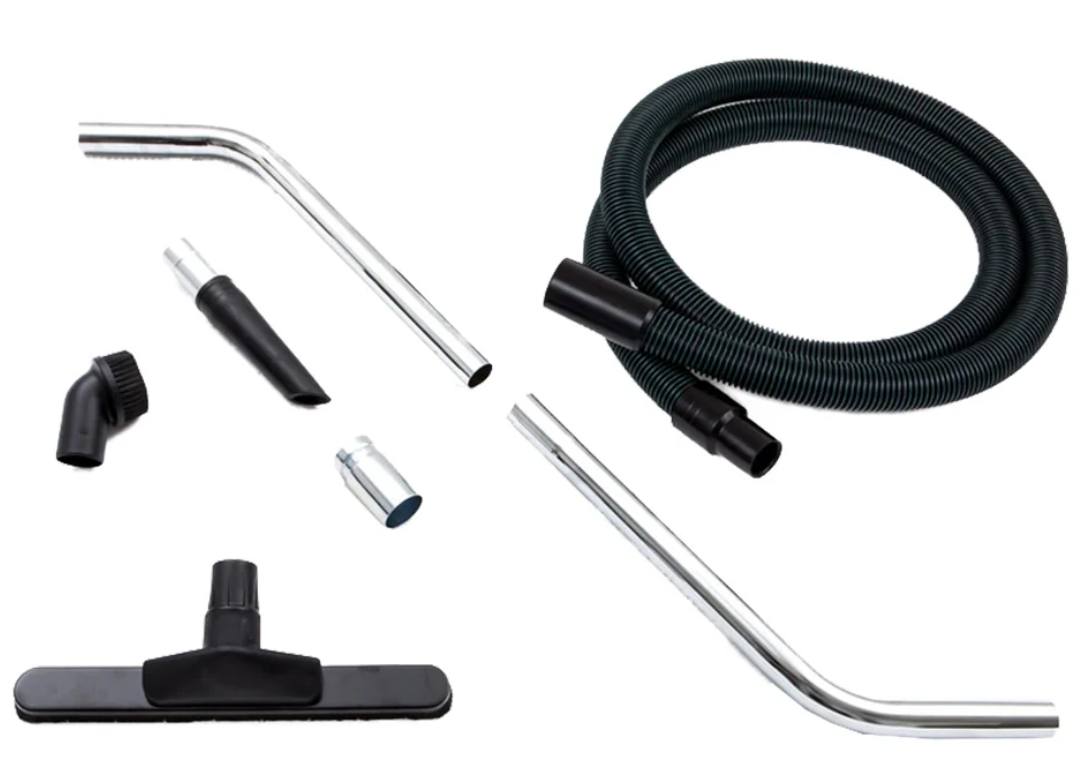

1 x Accessory set
Specifications
| Unit of measure | Data | |
|---|---|---|
| Zone | ATEX Zone: 20 Internal/22 External | |
| Ex Category | 1/3D (20 int/22 ext) | |
| Marking | II 1/3D Ex h tb IIIC T80°C (Int) / T95°C (ext) Da/Dc | |
| Voltage | V | 230 |
| Power | kW | 1.10 |
| Frequency | Hz | 50/60 |
| Current Draw | A | 5.00 |
| Inlet Diameter | mm | 50 |
| Bin Capacity | lt. | 40 |
| Noise Level (EN ISO 3744) | dB(A) | 74 |
| Dimensions | cm | 40x44x78h |
| Weight | Kg | 26 |
| Max Vacuum Rate | 2.500 | |
| Continuous Duty Vacuum | 2.500 | |
| Max Airflow | 180 | |
| Motor Type | Single-phase Bypass |
