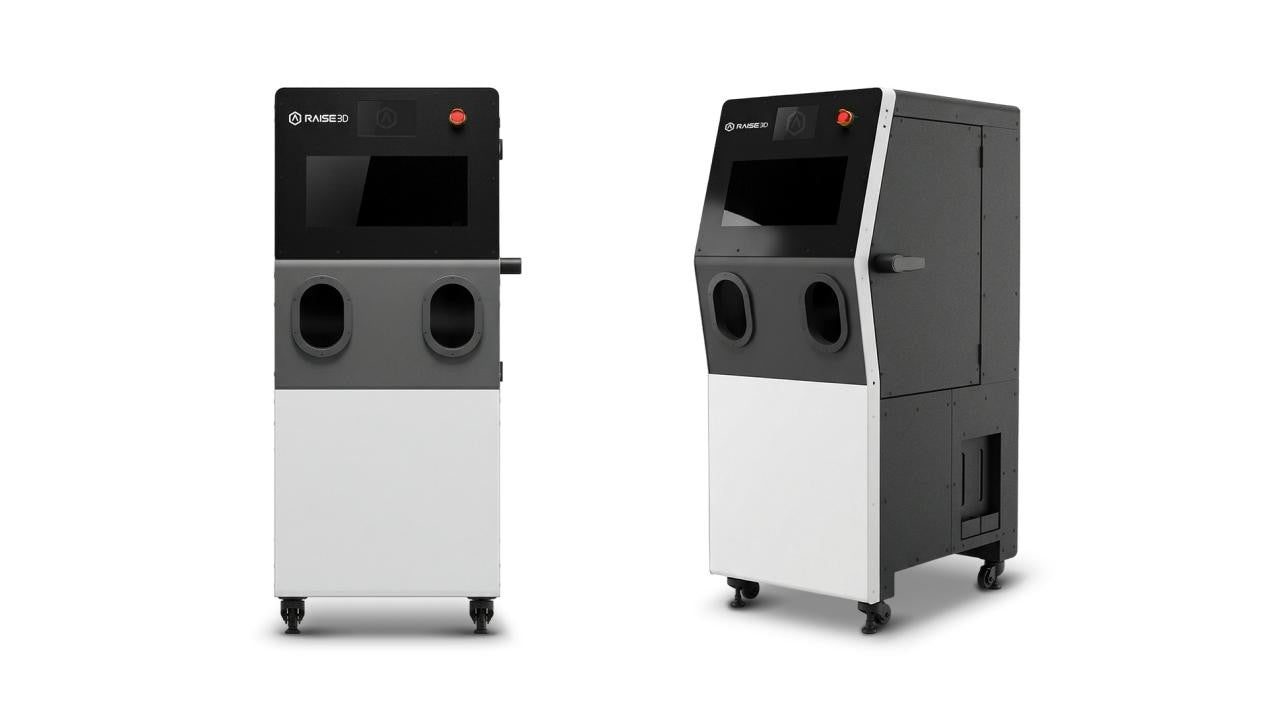

The Raise3D B520 is an industrial-grade automated blasting system designed to replace manual sandblasting with an efficient, repeatable, and scalable system. It features the Easy Swap Basket, an industry-first that allows seamless switching between blasting, transporting, and storage of up to 30L per cycle. This provides compatibility with the larger formats of SLS machines currently available on the market.
Equipped with a sealed chamber, precision-controlled media flow, and programmable parameters, the B520 ensures high consistent, high-quality surface finishes. Its optimized airflow and filtration system provides cleaner, safer operations with reduced variability. An optional polishing module further extends functionality, enabling a one-stop post-processing workflow. With an intuitive process requiring less than 5 minutes of manual handling, the B520 significantly improves efficiency and production consistency.
B520 Technical Specifications
Blasting Basket Size
Standard: φ262 × 520 mm / φ10.3 × 20.5 inch
Large: φ467 × 520 mm / φ18.4 × 20.5 inch
Compatibility

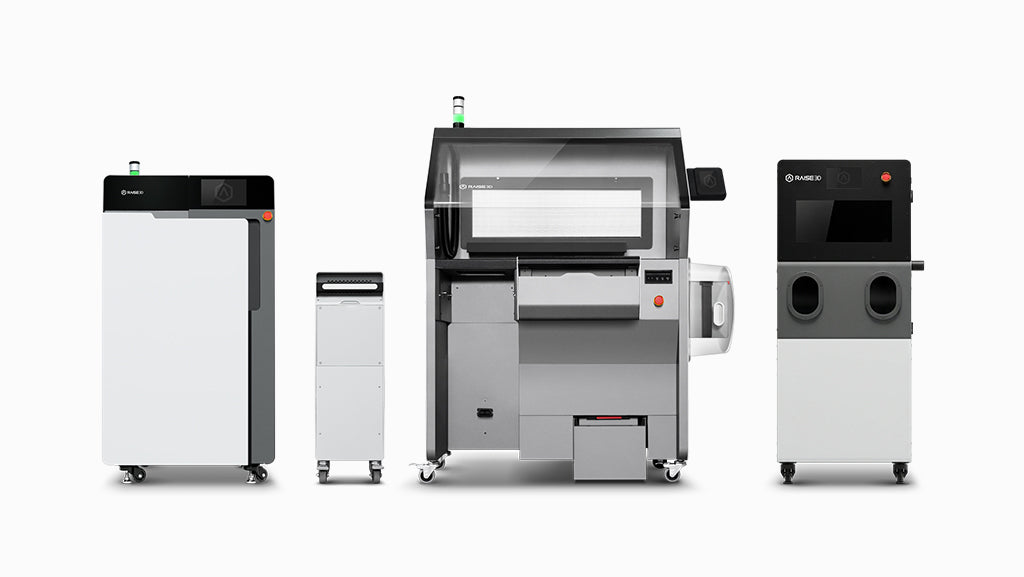

Raise3D RMS220
Third-party powder sintering 3D printers
Supported Process
Sandblasting: Automatic / Manual
Polishing (polishing module required): Automatic
Recommended Capacity
Standard: 10L
Large: 30L
Media Hopper Size
9L, approximately equal to 14kg of glass beads
Waste Hopper Size
15L
Compressed Air Input
Flow rate: >360 SLPM @ 6 bar
Pressure: 6-8 bar

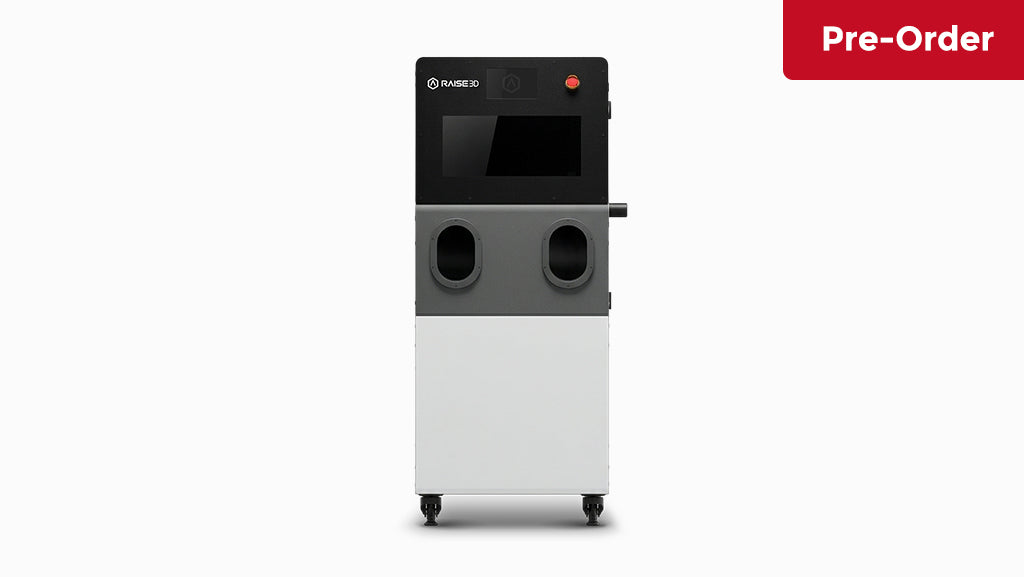

Order now, shipping from Q4 2026.
